1/8" Diameter 1 Flute Carbide End Mill for Plasics Acrylic PVC 6mm Flute Length DLC Coated

Our Price:	£4.40
List Price:	~~£6.60~~
Saving Of:	£2.20 (33%)

(Exc. 20% VAT)(£5.28 Inc. VAT)

Model: EP1S-1-81-80638DLC
Brand: APT Carbide End Mills

Shipped Weight: 20 g

Availability:

Only 10 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand

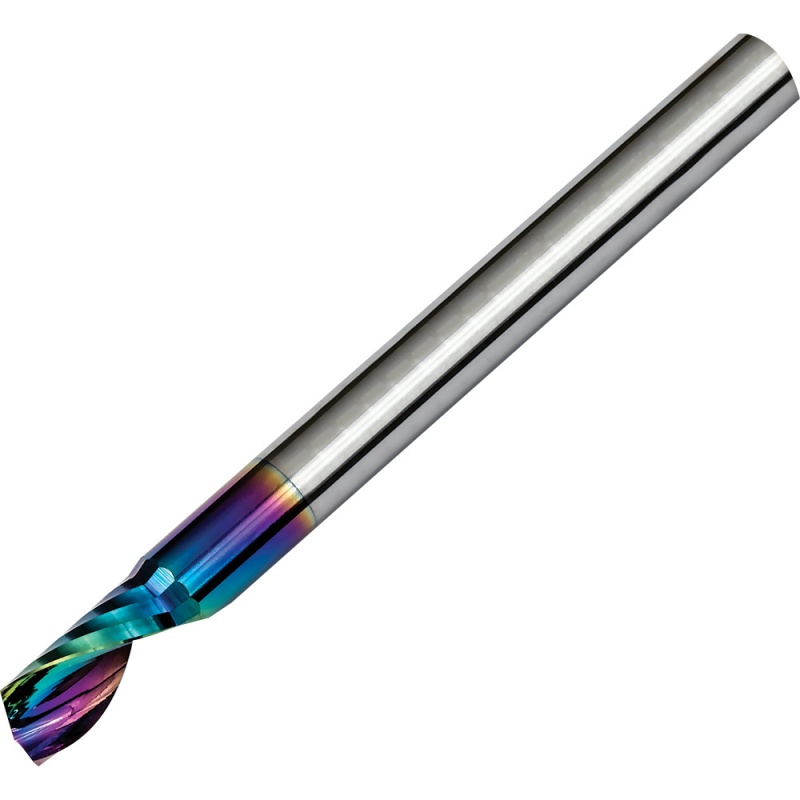

1/8" Diameter 1 Flute Carbide End Mill for Plasics Acrylic PVC 6mm Flute Length DLC Coated.

Made from wear resistant Uncoated Carbide for increased tool life, can be used on Aluminium, Brass, Copper, Gold, Magnesium Alloy and other Non-ferrous Metals when a cutter dedicated for these materials is not available.

DLC Diamond Like Carbon Coating can provide up to 100% increase in tool life, Honed edge flutes with polished surface decrease cutting forces and are excellent in finishing operations. Can be used for dry cutting.

When possible choose cutter with the shortest flute length and least overhang.

Dimensions for EP1S-1-81-80638DLC single flute milling cutter (in mm)

Cutting Diameter	Flute Length	Overall Length	Shank Diameter
1/8"	6mm	38mm	1/8"

Speeds and Feeds for router cutter, based on a max depth of 1 x diameter with high accuracy spindle and collets with optimum stability of spindle and workpiece holding, reduce feed rate for suboptimal conditions.

When cutting more than 1 x diameter reduce feed rate. For guidance only if vibration is produced try lowering the feed rate if not successful try raising feed very slowly, if no vibration is present increased feed rate may be possible.

Acrylic	Aluminium Alloy	Hard Plastic	Hardwood	Laminate
RPM 18000 Feed 2200 mm/min	RPM 18000 Feed 2200 mm/min	RPM 18000 Feed 1800 mm/min	RPM 18000 Feed 2200 mm/min	RPM 18000 Feed 2200 mm/min

Particle Board MDF	Phenolic	Soft Plastic	Plywood	Solid Surface
RPM 18000 Feed 3200 mm/min	RPM 18000 Feed 2200 mm/min	RPM 18000 Feed 2700 mm/min	RPM 18000 Feed 2700 mm/min	RPM 18000 Feed 1800 mm/min

Customer Reviews

Average Rating (1 Review):

Write a Review and share your opinions!

Rating:

almost eliminated post processing

27 November 2022 | Michael

really nice finish at stock F&S. very impressed with improvement over lapped carbide.

M

Was this helpful to you? Yes / No

This review has not been appraised.
