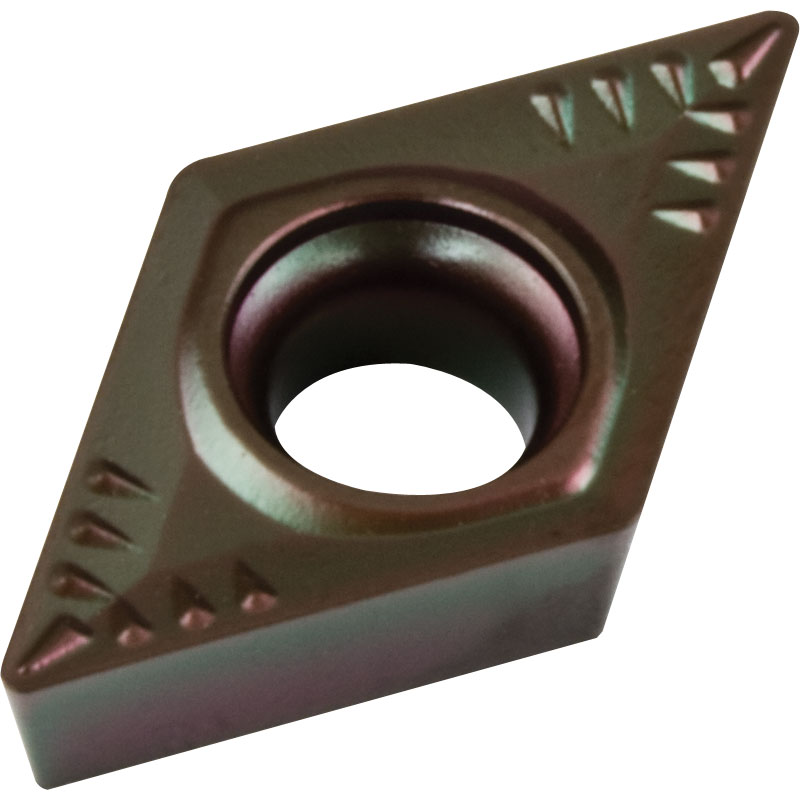

DCMT 070204 MPN PC35 Carbide Inserts for Turning CVD Coated for Difficult Steel Turning

Our Price:	£4.36
List Price:	~~£6.55~~
Saving Of:	£2.19 (33%)

(Exc. 20% VAT)(£5.23 Inc. VAT)

Model: DCMT070204MPNPC35
Brand: APT Carbide

Shipped Weight: 4 g

Availability:

Only 90 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

Carbide Inserts for Turning CVD Coated Grade PC35 (P35, M30 + CVD Ti(C,N) + Al2O3 Coating) with surface treatment) Main application High Alloy Steel & Steel under difficult conditions or low cutting speeds, extended application Stainless

Geometry MPN for Finishing to Moderate Interrupted Cutting

Dimensions for DCMT 070204 MPN PC35 (mm)

Cutting Edge Length	Inscribed Circle or Height	Thickness	Hole Dia	Corner Radius	Side Clearance
7.75	6.35	2.38	2.8	0.4	7°

General Cutting parameters

Material	Hardness HB	Cutting Speed VC: m/min	Depth of Cut ap(mm)	Feed f(mm)
Non alloyed steel 0-0.45% C	150-250	170-190	0.5-2.5	0.12-0.18
Low alloyed steel	250-300	90-150	0.5-2.5	0.12-0.18
High alloyed steel	200	120-200	0.5-2.0	0.12-0.18
Corrosion resistant steel	200	140-180	0.5-2.0	0.12-0.15
Stainless - Ferritic	200	140-200	0.5-2.0	0.12-0.15
Stainless - Austenitic	180	110-190	0.5-2.0	0.12-0.15
Stainless - Duplex	230-260	80-150	0.5-2.0	0.12-0.15
Stainless - Martensitic	330	55-75	0.5-2.0	0.12-0.15
