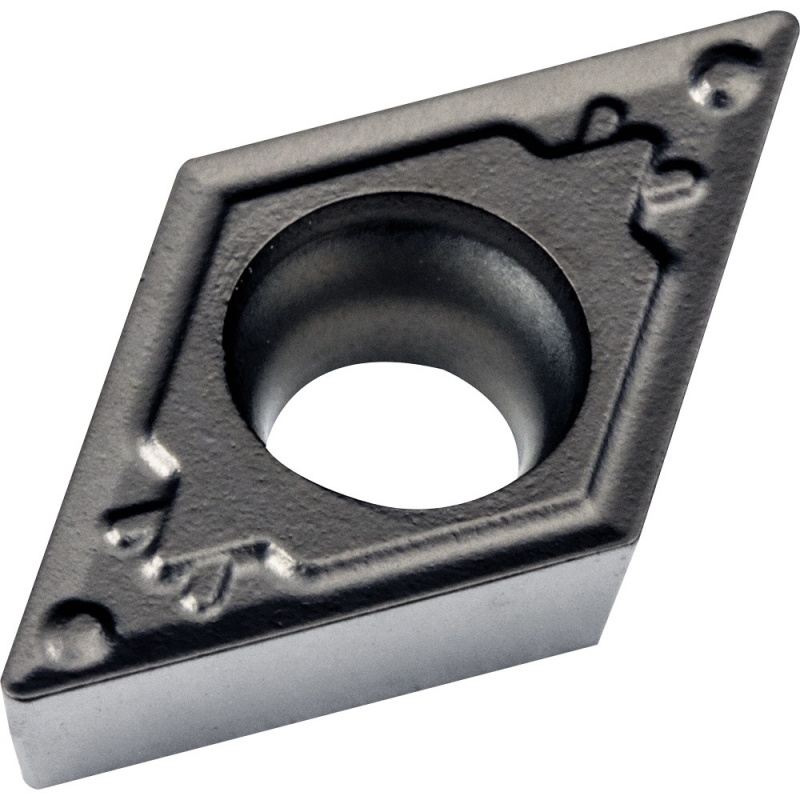

DCMT 11T304 FG PV20 Cermet Inserts for Finishing Steel and Stainless PVD Coated

DCMT 11T304 FG PV20 Cermet Inserts for Finishing Steel and Stainless PVD Coated
Zoom  Zoom
Our Price:  £1.80
List Price:  £2.70
Saving Of:  £0.90 (33%)
(Exc. 20% VAT)(£2.16 Inc. VAT)

Model:  DCMT11T304FGPV20
Brand:  APT Carbide

Shipped Weight:  7 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


DCMT 11T304 FG PV20 Cermet Inserts for Finish Turning of Steel and Stainless in grade PV20 covering P15, M15 and K15 range of materials. Provides superb surface finish under stable conditions resulting in excellent productivity and predictable tool life, outstanding performance when finishing Stainless.

Cermet grade PV20 is highly wear resistant and is suitable only for stable conditions with continuous cutting PVD TiN coated for improved tool life.

Geometry FG for Fine Finishing to Finishing Cuts.

Dimensions for DCMT 11T304 FG PV20 (mm)
Cutting Edge LengthInscribed Circle or HeightThicknessHole DiaCorner RadiusSide Clearance
11.49.523.974.40.4
General Cutting parameters
MaterialHardness HBCutting Speed VC: m/minDepth of Cut ap(mm)Feed f(mm)
Non alloyed steel 0-0.25% C150-250250-5000.3-1.50.05-0.18
Low alloyed steel250-300180-3000.3-1.50.05-0.18
High alloyed steel200160-2500.3-1.50.05-0.18
Corrosion resistant steel200230-2700.3-1.50.05-0.15
Stainless - Ferritic200170-2700.3-1.50.05-0.15
Stainless - Austenitic180180-2400.3-1.50.05-0.15
Stainless - Martensitic330130-2300.3-1.50.05-0.15
Grey cast iron180180-3000.3-1.50.05-0.18
Spheroidal cast iron160

120-200

0.3-1.50.05-0.18
Malleable / Tempered iron130160-2600.3-1.50.05-0.18
