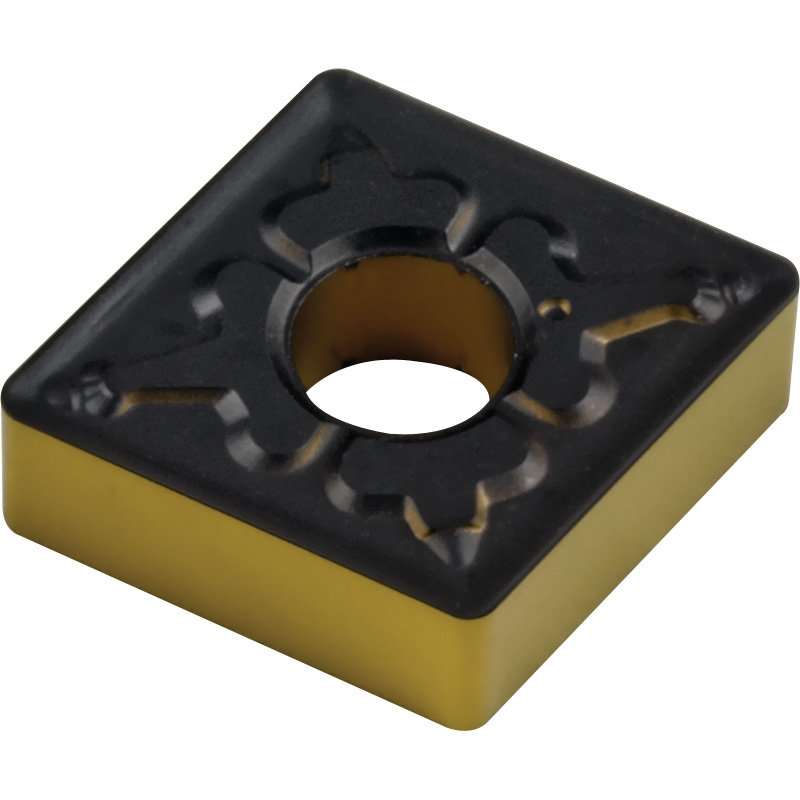

CNMG 090304 FW DP15 Carbide Inserts for Turning MT-CVD Coated for Steel

CNMG 090304 FW DP15 Carbide Inserts for Turning MT-CVD Coated for Steel
Zoom  Zoom
Our Price:  £1.96
List Price:  £2.94
Saving Of:  £0.98 (33%)
(Exc. 20% VAT)(£2.35 Inc. VAT)

Model:  CNMG090304FWDP15
Brand:  Uni-tip Carbide

Shipped Weight:  6 g

Availability:

Item is on a long delivery or is discontinued

Item is on a long delivery or is discontinued

Share

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip

CNMG 090304 FW DP15 Carbide Inserts for Turning in Coated Grade DP15 (P15, K15 + MT-CVD TiCN-Al2O3-TiN Coating).

Main application Carbon, Alloy Steel, Steel Castings finishing to roughing, continuous to light intermediate cutting.

Extended application grey and ductile iron at low cutting speed, hard materials with continuous and light intermediate cutting.

Geometry for General Machining of Steel.

Dimensions for CNMG 090304 FW DP15 (mm)
Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
9.65 9.525 3.18 3.81 0.4 0°
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Non alloyed steel 0-0.45% C 150-250 180-300 0.15-1.50 0.10-0.35
Low alloyed steel 250-300 180-280 0.15-1.50 0.10-0.35
High alloyed steel 200 160-260 0.15-1.50 0.10-0.35
Corrosion resistant steel 200 140-240 0.15-1.50 0.10-0.35
Grey cast iron 180 180-320 0.15-1.50 0.10-0.35
Spheroidal cast iron 160 180-360 0.15-1.50 0.10-0.35
Malleable / Tempered iron 130 180-380 0.15-1.50 0.10-0.35
