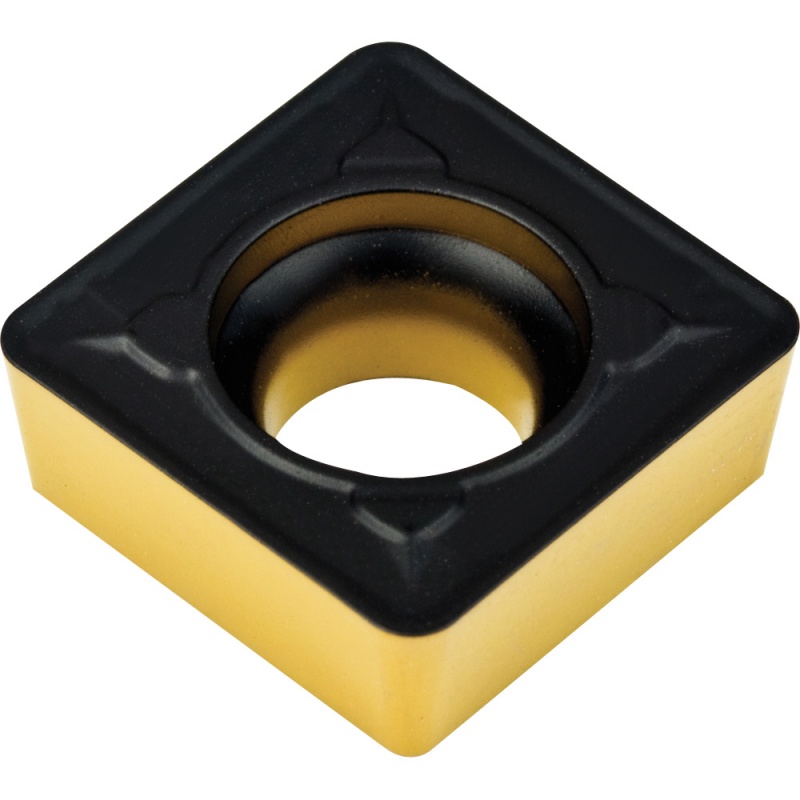

SCMT 120412 RX DP25 Carbide Inserts for Turning MT-CVD Coated for Steel

SCMT 120412 RX DP25 Carbide Inserts for Turning MT-CVD Coated for Steel
Zoom  Zoom
Our Price:  £4.00
List Price:  £6.00
Saving Of:  £2.00 (33%)
(Exc. 20% VAT)(£4.80 Inc. VAT)

Model:  SCMT120412RXDP25
Brand:  Uni-tip Carbide

Shipped Weight:  10 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

Share

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip

SCMT 120412 RX DP25 Carbide Inserts for Turning in Coated Grade DP25 (P25, M15 + MT-CVD TiCN-Al2O3-TiN Coating)

Main application Carbon, Alloy Steel.

Extended application stainless steel with continuous cutting.

Geometry for General Machining of Steel

Dimensions for SCMT 120412 RX DP25 (mm)
Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
12.7 12.7 4.76 5.5 1.2 7°
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Non alloyed steel 0-0.45% C 150-250 180-280 1.0-6.0 0.1-0.8
Low alloyed steel 250-300 180-260 1.0-6.0 0.1-0.8
High alloyed steel 200 160-240 1.0-6.0 0.1-0.8
Corrosion resistant steel 200 140-200 1.0-5.5 0.1-0.6
Stainless - Ferritic 200 140-200 1.0-5.5 0.1-0.6
Stainless - Austenitic 180 110-190 1.0-5.5 0.1-0.6
Stainless - Martensitic 330 55-75 1.0-5.0 0.1-0.5
