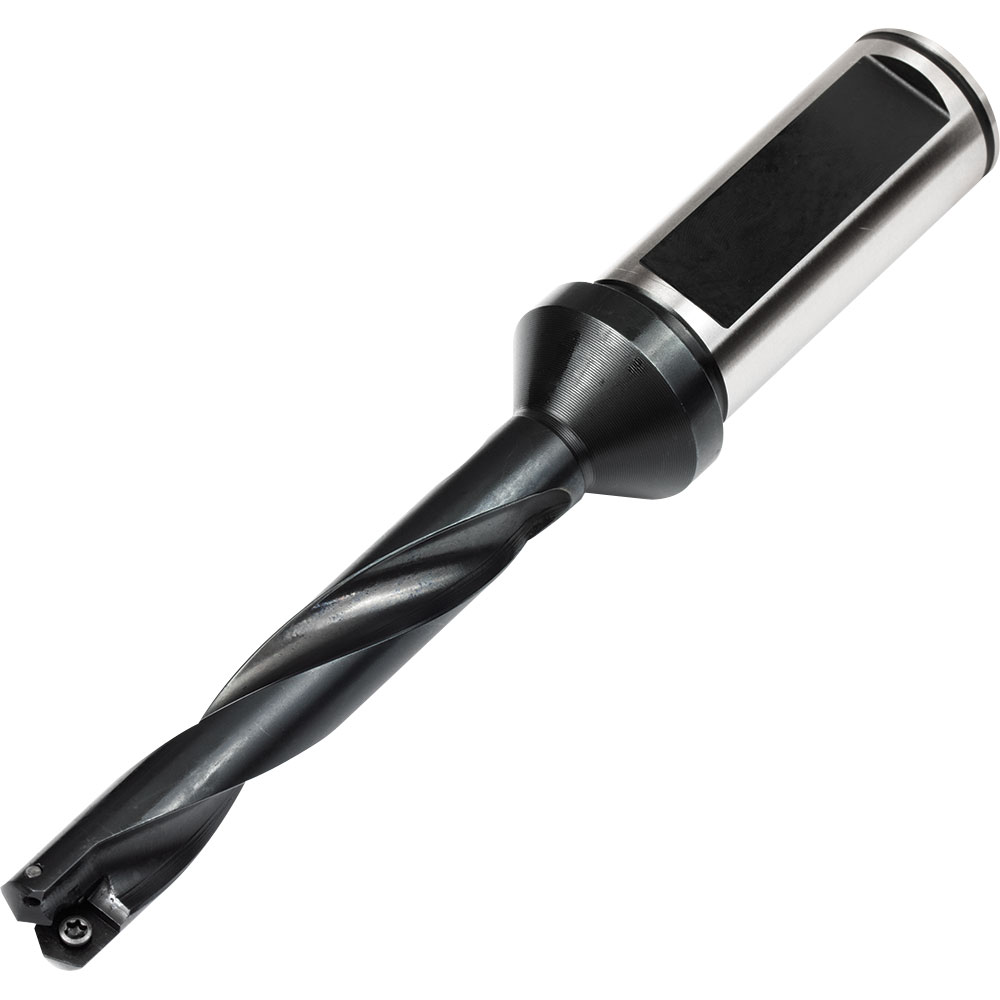

SDIHH-Y0-SH020-40N Series Y Spade Drill Holder 9.5-11mm Diameter Max 60.3mm Deep 7xD Standard Length

Zoom

Our Price: £76.00(Exc. 20% VAT)(£91.20 Inc. VAT)

Model: SDIHH-Y0-SH020-40N
Brand: APT Carbide

Shipped Weight: 320 g

Availability:

Item is on a long delivery or is discontinued

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

SDIHH-Y0-SH020-40N Series Y Spade Drill Holder 7xD Standard Length.

For use with series Y inserts 9.5mm to 11mm Diameter with a Maximum Depth of 60.3mm.

Helical Flute with Weldon Shank and Through Coolant.

Suitable for Conventional and CNC machining.

Inserts are self centering drill from flat work surface without pre-drilled hole.

Cutting data is available on the individual insert page as this is a standard length drill body it should be possible to use the medium values of the cutting data as long as the machine is in good condition and the conditions are stable otherwise consider reducing the speed by 20% and the feed by 10%.

Dimensions for SDIHH-Y0-SH020-40N

Insert Series	Diameter (A)	Max Drill Depth (L1)	Body Length (L2)	Ref. Length (L3)
Y	9.5-11mm	60.3mm	89.7mm	92.1mm

Overall Length (L)	Shank Length (L4)	Shank Diameter (D1)	Pipe Tap Rear (G)
139.7mm	50mm	20mm	1/8"
