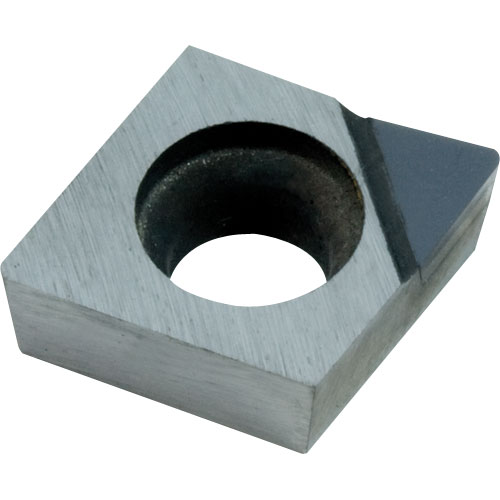

CCMT 060204 PCD 1300 Diamond Turning Insert for Aluminium Alloys with less than 12% Si content

Our Price:	£22.00
List Price:	~~£33.00~~
Saving Of:	£11.00 (33%)

(Exc. 20% VAT)(£26.40 Inc. VAT)

Model: CCMT060204PCD1300
Brand: APT Carbide

Shipped Weight: 10 g

Availability:

Only 20 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

PCD Diamond Turning Insert in Grade PCD 1300 style CCMT 060204 PCD for Machining Aluminium with less than 12% Silicon content also suitable for Graphite, Carbon.
Plastic Composites, Rubber, Wood, Copper and Bronze Alloys, Zinc.

Dimensions for CCMT 060204 PCD 1300 (mm)

Edge Length	Inscribed Circle or Height	Thickness	Hole Dia	Corner Radius	Side Clearance
6.4	6.35	2.38	2.8	0.4	7°

General Cutting Parameters

Material	Cutting Speed m/min	Feed mm/rev	Depth of Cut
Aluminium Alloys Si<5%	500-3000	0.1-0.5	up to 3mm
Aluminium Alloys Si<12%	400-1500	0.1-0.5	up to 3mm
Copper, Bronze, Lead Alloys	200-1000	0.1-0.3	up to 3mm
Brass, Magnesium, Zinc Alloys	200-2000	0.1-0.3	up to 3mm
Composite Plastics	200-800	0.1-0.3	up to 2mm
Wood	500-3000	0.1-0.5	up to 3mm
Graphite, Carbon, Rubber	100-500	0.1-0.3	up to 3mm
